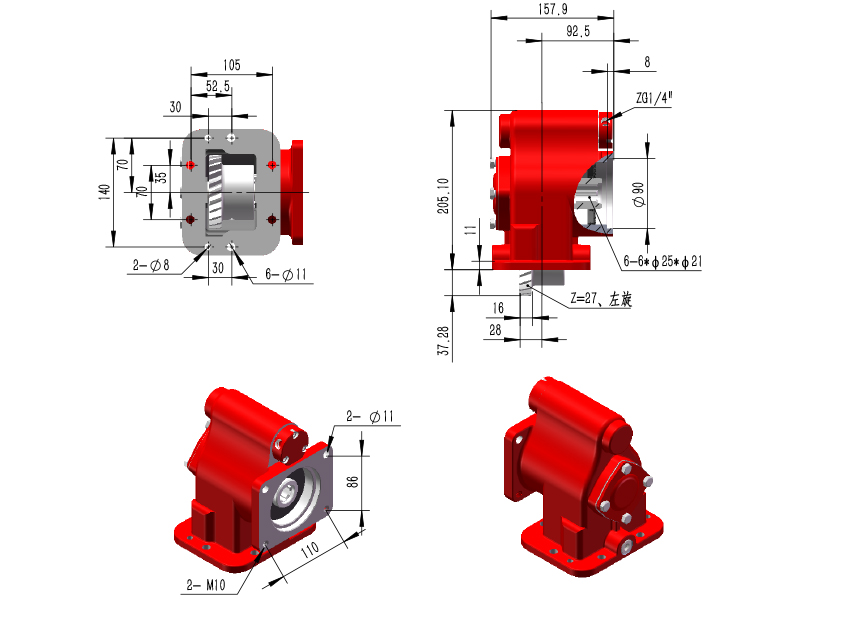

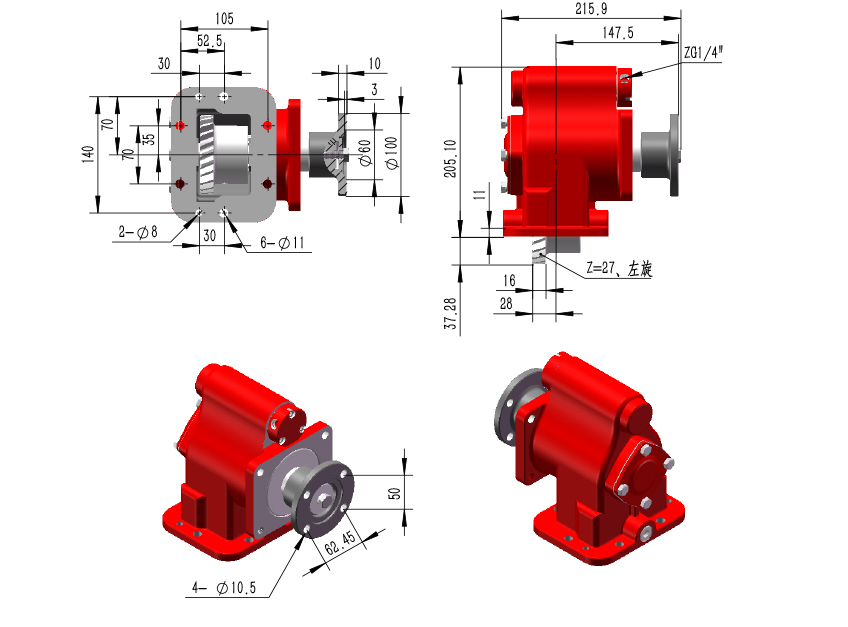

Shape and installation dimensions
Technical Parameters | |||
Model | FLQ2533QN | Output Shaft Rotation | Contrary To Engine Rotation |
Speed Ratio | 1.316 | Output Form | Rectangular Connection Flange |
Output Torque(N.m) | 250 | Output Shaft Head Form | Internal Splines |
Manipulation Mode | Pneumatic | Applicable Models | EQ1092(F) |
Number Of Teeth Engaged | z=25、Levorotatory | With Gearbox | 17000D4-010,1700D-010,EQ140-2 |
