Introduction

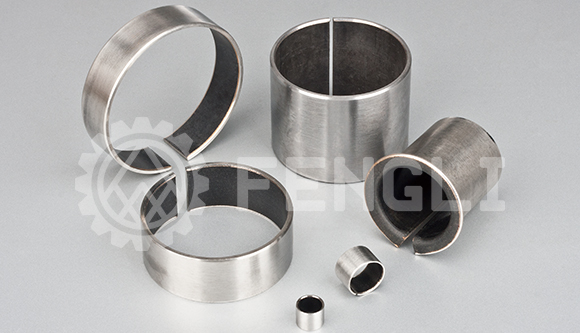

SF-1T gear pump special bearings, is based on the structure of the SF-1X material, according to the high-PV gear pump working conditions designed to launch a special formula products. Products with special advantages of anti-fatigue impact. Applicable pump pressure: 16-25Mpa, linear speed of 3.5-5m / s. In the realm of fluid lubrication under the PV value of up to 120 N / mm2.m / s, is a variety of gear pumps, piston pumps, vane pump the best choice. This product passed the Yangtze River Hydraulic Factory CBK1 pump 100 million times the impact test, the quality level of the domestic leading position.

Data	Code	SF-1T
Data	Material	Steel+Ronze+(PTFE+Pb+Filler)
Applications		Products are mainly used in high-pressure gear pumps, piston pumps, vane pumps.
Max Load Capacity P (Dry Friction)	Static Load N/mm2	250
	Dynamic Load N/mm2	140
	Oscoillation Load N/mm2	60
Max Line Speed V	Dry Friction m/s	2.5
Max Line Speed V	Oil Lubrication m/s	＞5
PV Value Limit	Dry Friction m/s N/mm2·m/s	1.0
PV Value Limit	Oil Lubrication m/s N/mm2·m/s	10
Friction Coefficient u	Dry Friction	0.08~0.25
Friction Coefficient u	Oil Lubrication	0.02~0.08
Mating Axis	Hardness HB	＞220
Mating Axis	Roughness Ra	0.4~1.25
Working Temperature ℃		-200~+280
Thermal Conductivity W/mk		40
Coefficient Of Linear Xpansion		11×10^-6/K
Outside Surface Plating		copper/tin
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements.
