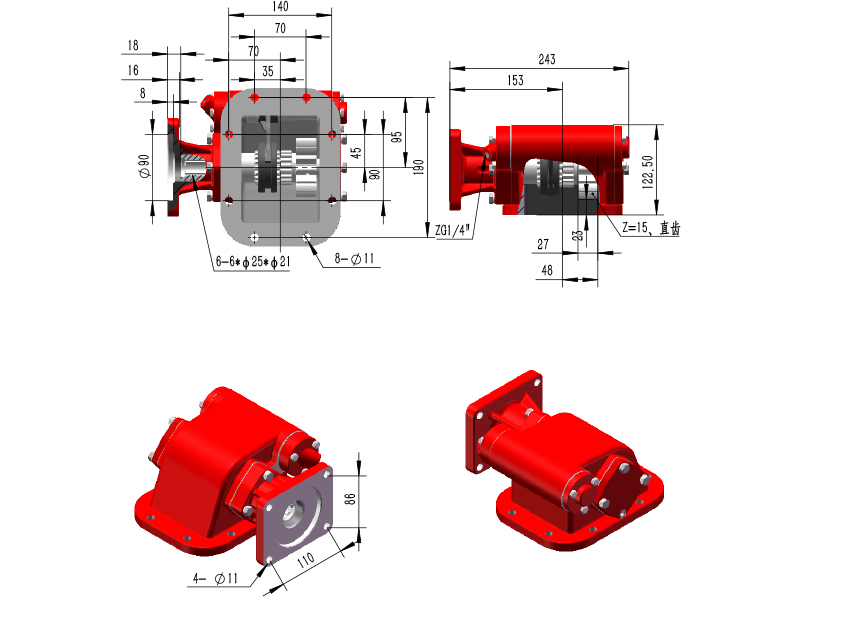

Shape and installation dimensions
Technical Parameters | |||
Model | PTO1523QN | Output Shaft Rotation | Contrary To Engine Rotation |
Speed Ratio | 1.24 | Output Form | Rectangular Connection Flange |
Output Torque(N.m) | 350 | Output Shaft Head Form | Internal Splines |
Manipulation Mode | Pneumatic | Applicable Models | EQ1208 |
Number Of Teeth Engaged | z=15、Straight Teeth | With Gearbox | DC6J85T,17GOA3-(32,3334,35) |
